Sol-R 1 Flightstick RZ Axis Calibration

Product: Sol-R 1 Flightstick

This article will help you to calibrate the joystick and mini-stick of the Sol-R 1 Flightstick. Calibration can be useful if you find that the joystick and/or mini-stick are no longer centered.

Important :

The Sol-R Flightstick must be mounted on the Sol-R base.

1- The Sol-R 1 Flightstick must be unplugged to begin

2- Press button 35 and push trigger 27 upwards. Hold them in position

3- Connect the Sol-R 1 Flightstick to a USB port on the PC while holding button 35 and trigger 27

- The LED around the Analog mini-stick flashes

4- Release button 35 and trigger 27

5- Press and release SCROLL button

- The LED around the Analog mini-stick flashes faster

6- Rotate the analog mini-stick three times

- Push the mini-stick to its maximum peripheral position; it should touch the stop.

- Rotate the stick three full turns, keeping it in contact with the stop.

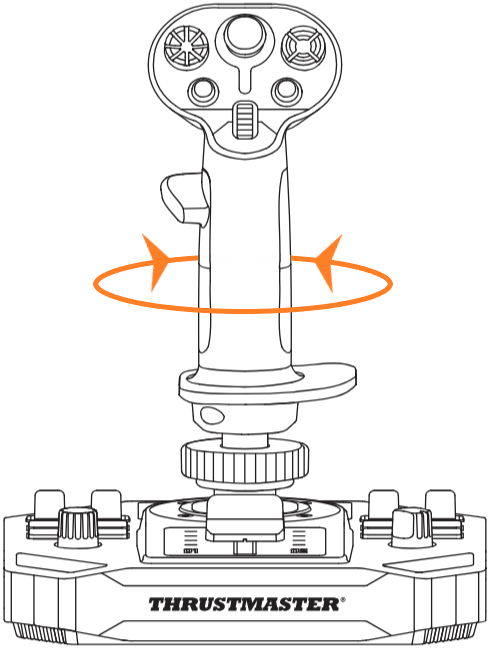

7- Rotate the stick on the RZ axis

- Rotate the stick counterclockwise to the stop and return it to the center

- Rotate the stick clockwise to the stop and return it to the center

8- Press and release SCROLL button

- The LED around the Analog mini-stick stops flashing

9- Unplug and then plug the Sol-R 1 Flightstick back in

The RZ axis calibration is complete.
